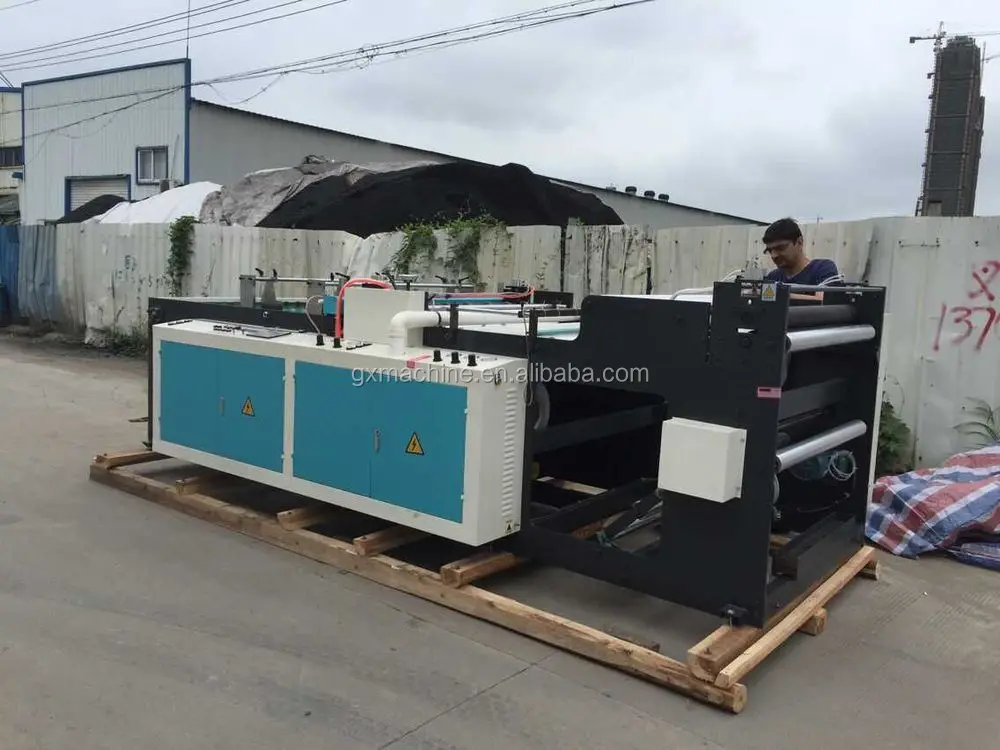

Full automatic A2 A3 A4 paper sheeting machine

FOB Reference Price:Get Latest Price
US $16,000-30,000 / Set | 1 Set/Sets follow clients' requirement to make the machines (Min. Order)
Supply Ability:
20 Set/Sets per Month improve capacity all the time
Port:
Ningbo/Wenzhou
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Paper Cutting Machine
Computerized:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
QIANGTUO
Model Number:
1100
Voltage:
380V 50/60HZ
Power(W):
8KW
Dimension(L*W*H):
5.8*2.1*1.5m
Weight:
2500kgs
Certification:
CE
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
paper roll to sheet
Packaging & Delivery
Packaging Details
Wooden case
Delivery Time
30days

Performance and Characteristics:



This A4 paper cutting machine (A4 paper machine/A3/A2 )is suitable for cutting big rolling packaging materials such as paper, paper-plastic, multicolor laminated material, etc.

This machine is specialist for horizontal and vertical cutting paper rolling materials to A4 ,A3, A2 size etc .it can be with 1 roll, or 2rolls, or 4 rolls etc.





1. Adopts pneumatic automatic materials loading system with much easy operation and convenience



2. Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting and vertical cutting at one time



3. It adopts servo motor for controlling constant-length cutting.



4. It adopts PLC control, contact screen operation



5. It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.



6. This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste



7.  It has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with computer control be adopted for transmission section ,making it become much more steady operation



8. It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system



 please contact to my whatsapp/wechat for more details: 008615868037109,

miss kiki





Main Technological Parameters:



Model

1100D(2 or 4 roll)

1300D(2 or 4roll)

Max.width of cutting

1070mm

1270mm

Max diameter of material

Φ1400mm

Φ1400mm

Min.width of cutting

50mm

50mm

Length of cutting

20-400mm

20-400mm

Speed

10-140times/min

10-140times/min

Precision

±0.2mm

±0.2mm

Total Power

9.5kw

11kw

Weight

3500kg

4000kg

Overall dimension(LXWXH)

8600x1500x2000mm

8600x1800x2000mm
